BSL Support Guide

Features that use BSL

Dormancy Prevention
Business BillPay
Enrollment
Account Recovery
Password Management
Consumer Status Check
Username Management
Transfer Entitlements (for Iberia or other FI’s with certain NT custom)
Account Entitlements
Stop Payments
Change Account Name
Change Username
NT SSO (This is the only item for which we’re using the BSL for CU’s (as of 7/10/18)
Change Contact Info

Documentation

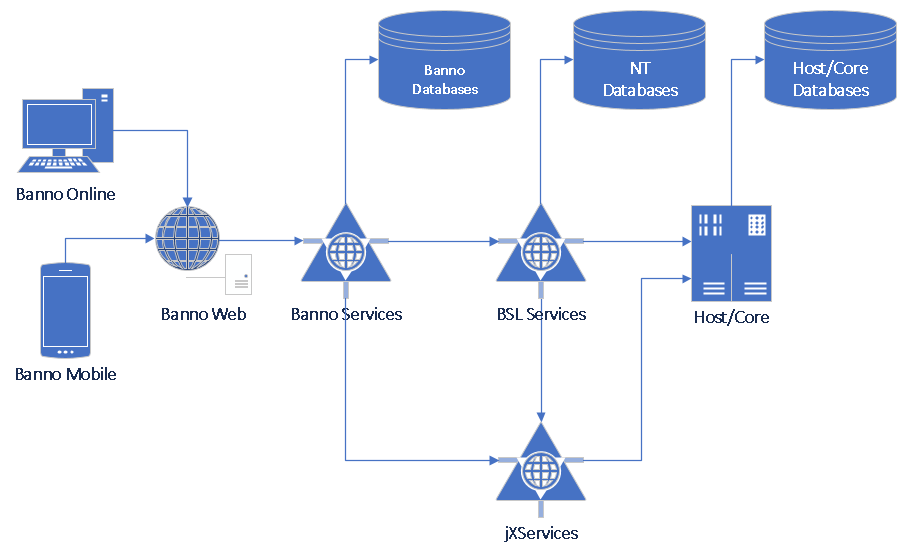

Diagram

BSL Diagram

Author: David Whitbeck, BSL Architect

Implemented BSL Operations

AddStopPayment

Called with: NTID
Used for: Stop payments

AdminPasswordReset

Called with: NTID
Features: Enrollment, Account recovery

Authenticate

Called with: NTID
Features: Dormancy prevention

GetAccount

Called with: NTID
Used for: Enrollment, Account recovery, Transfer entitlements, Account entitlements, Business Billpay, Stop payments

GenerateAuthenticationToken

Called with: NTID
Used for: NT SSO

GetAliasRules

Called with: Bank number
Used for: Enrollment, Change username

GetPasswordRules

Called with: Bank number
Used for: Enrollment, Account recovery, Change username, Change password

GetStopPayments

Called with: NTID
Used for: Stop payments

Save

Called with: NTID
Used for: Change contact info

SaveAccount

Called with: NTID
Used for: Change account name

SaveAlias

Called with: NTID
Used for: Change username

SaveCredentials

Called with: NTID
Used for: Enrollment

SavePassword

Called with: NTID
Used for: Change password

ValidateAlias

Called with: NTID or Bank number
Used for: Enrollment, Change username

ValidateAuthToken

Called with: NTID
Used for: NT SSO

ValidatePassword

Called with: NTID or Bank number
Used for: Enrollment, Account recovery, Change password

Production Support Tips

Kibana

Kibana searches can be constructed using this general template:
app_name:netteller-bsl-service AND [Operation] AND [NTID/Bank Number]

Escalation

When troubleshooting a production issues with a particular BSL request, our current process is to email David Whitbeck (dwhitbeck@jackhenry.com), James Folkerts (jafolkerts@jackhenry.com) and Phi Nguyen (PNguyen@jackhenry.com). cc bannosupport@jackhenry.com on all communications. The BSL team will always want to know the time and the activity ID of the request. The activity ID is in every request, e.g.:


{
  "ActivityTracking" : {
    "ActivityId" : "be34a620-847d-11e8-9b75-005056ada769"
  },
  "EndUser" : {
    "InternalId" : "789500000695",
    "InternalSecondaryId" : null,
    "UserType" : "XXXX"
  },
  "ApplicationNameType" : "XXXX",
  "InstitutionId" : "XXXX",
  "__type" : "XXXX",
  "AuthenticationUser" : {
    "InternalId" : "789500000695",
    "InternalSecondaryId" : null,
    "UserType" : "XXXX"
  }
}

Test Environments

netteller-bsl-configs is a web service that contains configuration data. It serves netteller-bsl-service by exposing the Bank Numbers and Base URL.

Note that the Base URL is used in order to determine which BSL Web Server to access.

-- Querying in postgres-jabberwocky in uat-2 shows:
   netteller_bsl_configs=> select distinct base_url from bsl_configs ;
                  base_url
   --------------------------------------
    https://ntbsl.netteller.com:442        -- Production Environment
    https://ntbsl-e.qa.netteller.com:442   -- Pre-Prod/UAT Environment
    https://ntbsl-a.qa.netteller.com:442
    https://ntbsl-d.qa.netteller.com:442
(4 rows)

2018 Silverlake Test - E
2019 Silverlake Test - D
2020 Silverlake Test - D
Silverlake Business - D
2018 CIF 2020 Test - E
2020 CIF 2020 Test - D (Doesn’t exist in Banno yet)
Core Director Test - A

Note that, per Rachel Fredericksen, the “2018 *” FIs will be retired.
