Enrollment Guide

Description

For an end user who has an account at an institution, but has no Online Banking account, a user may enroll in Online Banking with NetTeller or Episys, as well as create a Banno User.

You can find the API Docs here.

Enrollment Session Progress

During Enrollment, which consists of, at a high level, the following steps:

1. Verify information (TIN, Account Number, Phone and Email) is correct
2. Sign up and verify 2FA Code
3. Create a username and password

consumer-enrollment is the web service that’s responsible for handling HTTP Requests to enroll a user and keep track of a user’s progress through Enrollment.

States

Running the following query against the consumer_enrollment database on the postgres-jabberwocky server

SELECT unnest(enum_range(NULL::session_status_type))

provides this information:

consumer_enrollment's Database Enum | Enrollment Report Status | Description
------------ | ------------ | -------------
 generic_failure | Server failure | error occurred, most likely an internal server error (HTTP or RPC). consumer-enrollment, despite retries (which apply in some cases), it was dead in the water due to this error.
 lookup_authentication_failed | Lookup authentication failure | failed to enroll or send code for 2FA
 lookup_institution_not_found | Institution not found | did not find institution id
 lookup_phone_number_not_matched | Phone number doesn't match | request's phone number did not match phone number in the core for that user
 lookup_too_many_requests | Too many attempts | user is rate limited due to too many attempts by TIN or IP
 lookup_user_already_enrolled | User already enrolled | user is already enrolled in Online Banking, so the user cannot proceed through enrollment
 lookup_user_not_found_in_core | User not in core | did not find user in the core
 lookup_success | Lookup success | successful verification of user at host.
 oob2fa_incorrect_code | 2FA incorrect code | user entered the wrong 2fa code
 oob2fa_authentication_failed | 2FA failure | failed to send 2fa code again, i.e. the user requested another code to be sent, but that re-send failed
 oob2fa_success | 2FA success | user verified 2fa code successfully
 enroll_lacked_oob_authentication | Not authenticated | user has attempted to enroll, via POST /enrollment, but hasn't verified 2FA code. This indicates a defect with Enrollment's software. Please open a customer issue.
 enroll_credentials_violated_rules | Invalid credentials | user tried to enroll, but their username or password violated one or more username or password rules
 enroll_netteller_failed | Netteller failure | failed to enroll user in online banking via NetTeller due to a, most likely, BSL error
 enroll_episys_failed | Episys failure | failed to enroll user in online banking via Episys
 enroll_success | Enrolled | user enrolled successfully
 lookup_invalid_symx_member_number | Unknown error | user's request included an invalid Symx Member Number, i.e. wrong format.
 lookup_user_restricted_from_enrollment | Unknown error | user is restricted from using enrollment since institution has restricted that user. Today restrictions apply by age and individual only. See institution_abilities.
 lookup_unknown_age | Unknown error | the institution has enforced a minimum age to enroll, however the core does not have an age for the given user.
 memo_mode_enabled | Unknown error | credit union user is unable to proceed since the credit union is undergoing maintenance
 unable_to_check_memo_mode | Unknown error | encountered an error when trying to determine if the credit union was in memo mode
 lookup_age_not_old_enough | Unknown error | user's age does not meet the minimum of the institution.
(22 rows)

lookup_user_restricted_from_enrollment

The lookup_user_restricted_from_enrollment status applies when an FI restricts Enrollment to individuals only.

Kibana will report that error in the following way:

EnrollmentWorkflow.initiate failed with
UserRestrictedFromUsingEnrollment(CustomerSearchElement(...,None,Some(I)),

An enrolling user is considered to be an individual if jXchange’s CustSrch shows TINCode and CustType values of "I" and "I".

Since the above user does not have a TINCode, i.e. None, then that user is not an individual.

In addition, users may enroll in Banno if the FI would like ForeignReportable and ForeignNonReport to be able to enroll. That requires a minor code change on Espresso’s end.

               TINCode, CustType
      case (Some("F"), Some("I")) => ForeignReportable
      case (Some("G"), Some("I")) => ForeignNonReport

Rate Limiting

Banno Enrollment rate limits users via its own database, as well as via NetTeller.

Note that, for NetTeller Institutions, Banno achieves Rate Limiting via the BSL’s VerifyHostCustomerEnrollment. In the event a user has become rate limited, BSL will respond with, effectively, user not found. As a result, when a user becomes rate limited for Banno Enrollment, the MDS API, via POST /enrollment/lookup will return with an HTTP-404. In other words, once a NetTeller Institution’s enrolling user has been rate limited, further attempts will return in an HTTP-404.

Furthermore, for NetTeller institutions, rate limiting occurs only by tax ID, and once a user has been rate limited, that restriction may be reset on the NetTeller Host for the respective tax ID.

Once a user has met the “Max by IP” or “Max by TIN” rate limits, that user is then not allowed to re-try for 24 hours. Note that either rate limit is independent of one another.

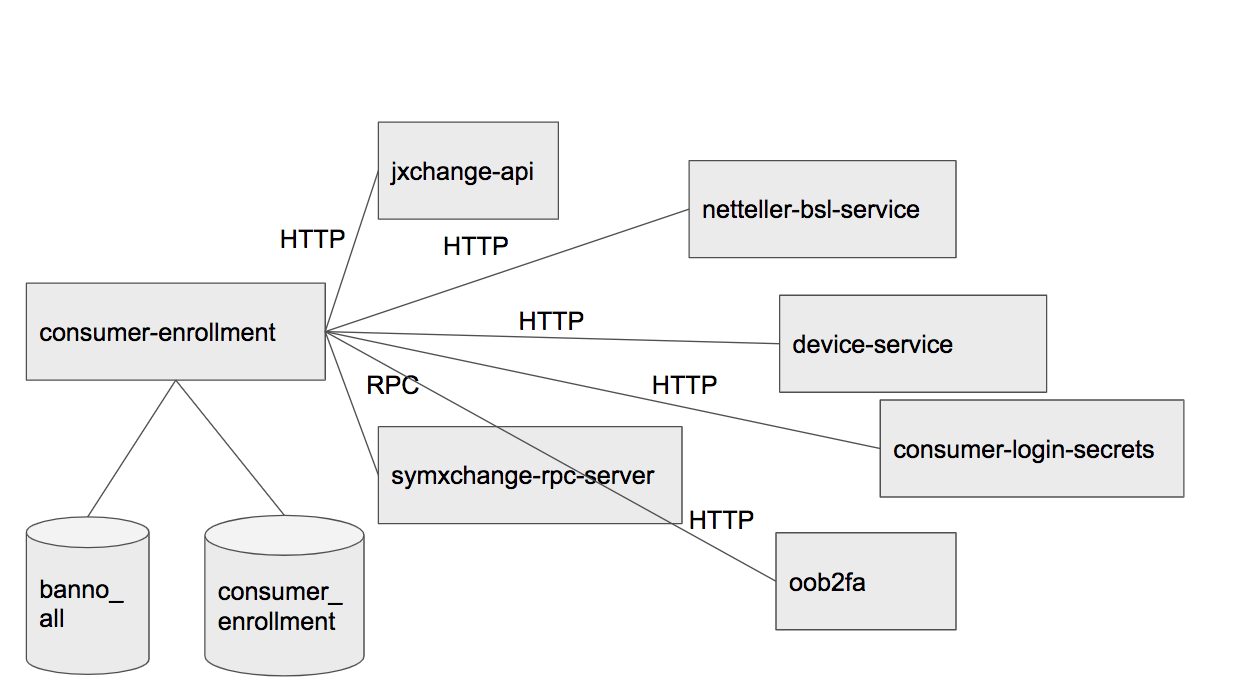

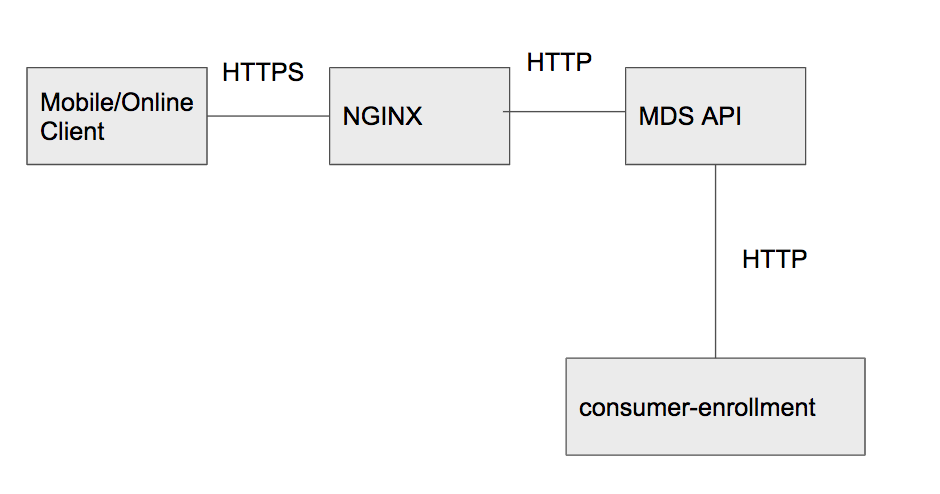

Technical Details

The following serves as a technical overview of Enrollment.

There is an for a version of these diagrams as an editable Google Slide. The API Docs for Enrollment live in this Swagger file on GitHub.

POST /enrollment/lookup

The purpose of this endpoint is to determine if the user, whose details are presented in the HTTP Request, is eligible for Enrollment.

The following steps happen, in order:

1. From the request, look up in banno_all database whether the institutionId is a SymXchange or NetTeller Institution
2. [SymXchange only] Check if the user is presently rate limited by TIN or IP. See above section on Rate Limiting for more details
3. [SymXchange only] Check if the Credit Union is in Memo Mode. Effectively it means that it’s in maintenance mode and cannot presently handle Enrollment requests.
4. Look up the user in core, i.e. SymXchange or BSL
   • [NetTeller] Get a list of Customer IDs (CIFs) via jxchange-api for the user’s request-provided TIN
   • [NetTeller] For each CIF, look up its details via jxchange-api
   • [NetTeller] Pick the first CIF whose phone number matches the request-provided phone number
   • [NetTeller] Check restrictions, namely whether the FI only allows individual users to enroll and whether the user is old enough
   • [NetTeller] Verify the the user is eligible to enroll via netteller-bsl-service
   • [SymXchange] Validate the provided SymX Member Number. There’s a refined type used in consumer-enrollment for it.
   • [SymXchange] Verify the the user is eligible to enroll via symxchange-rpc-server
5. Increment the user’s enrollment attempt in consumer_enrollment database’s rate_limit table.
6. Enroll the user in 2FA via oob2fa
7. Send a 2FA code via oob2fa
8. Create a JWT, custom to Enrollment (note that Account Recovery has its own JWT)
9. Respond with an HTTP-202, prompting the user to enter the oob2fa-sent 2FA code, including the JWT in a response header

Note that the purpose of the JWT for Enrollment is to achieve authentication, as well as to keep state to maintain, effectively, a session. It is valid for 10 minutes and includes JSON state, e.g. whether the user verified their 2FA Code, etc.

Database Queries

All Enrollment attempts are recorded in the consumer_enrollment database. To debug a customer issue, querying the database can be useful.

Queries

Find enrollment attempts by email

select status, message, attempted_at at time zone 'EST'
from sessions
join session_progress using (user_id)
where lower(email) = lower('<replace with email>')
and institution_id = '<replace with institution id>'
order by attempted_at desc;
